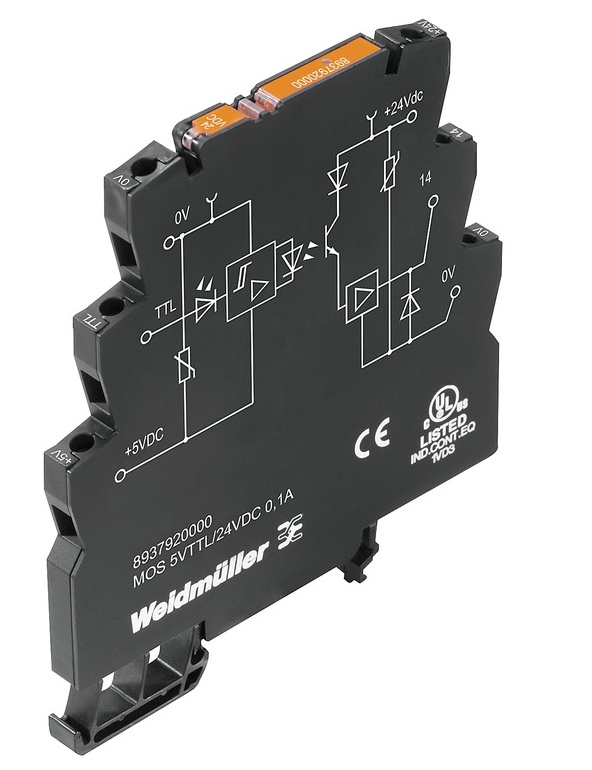

MOS 5VTTL/24VDC 0,1A

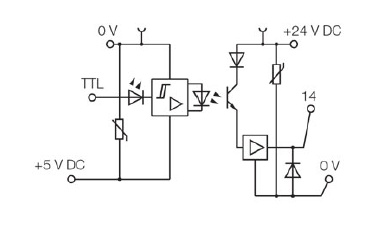

optocoupleur entrée 5VTTL pour commuter 24vdc 100MA
| Reference: | 8937920000 |
| Code commande: | 1383-9680 |
| Disponibilité: | sous 7 jour(s) |
Caracteristiques
| Poids: | 50g |

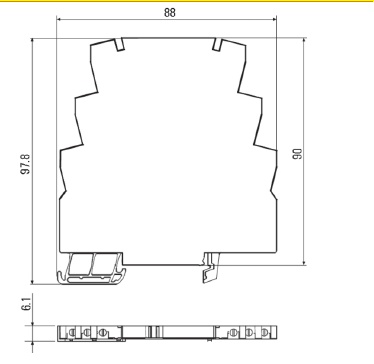

| Dimensions: | 88 x 97 x 6 mm |
| Plage tension cmde min: | 5V |
| Plage tension cmde max: | 5V |
| Type sortie: | DC |
| Plage tension charge min: | 19.2V |
| Plage tension charge max: | 30V |
| Courant commutable: | 100mA |
| Montage: | Rail DIN |
| Type de commande: | Tension DC |
| Fonction: | Tout ou rien |
