RELAIS STATIQUE 75A/24-520VAC/CTRL 5-30VDC
Gamme SC8 avec commutation au zéro de tension (synchrone), intégrant un réseau RC recommandée pour tousles types dapplications.
| Reference: | SC867110 |
| Code commande: | 1057-7721 |
| Disponibilité: | Nous contacter |
Caracteristiques
| Poids: | 81g |

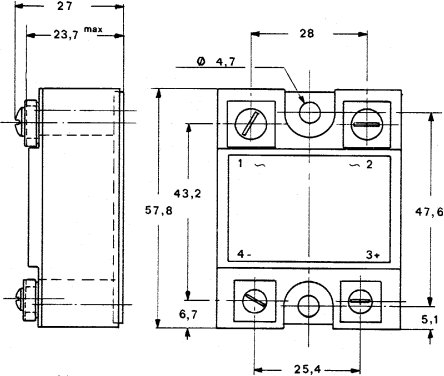

| Dimensions: | 44.5 x 58.2 x 27 mm |
| Plage tension cmde min: | 5V |
| Plage tension cmde max: | 30V |
| Type sortie: | AC MONOPHASÉ |
| Plage tension charge min: | 24V |
| Plage tension charge max: | 520V |
| Courant commutable: | 75A |
| Type: | SYNCHRONE |
| Montage: | Sur dissipateur |
| Type de commande: | Tension DC |
| Fonction: | Tout ou rien |
