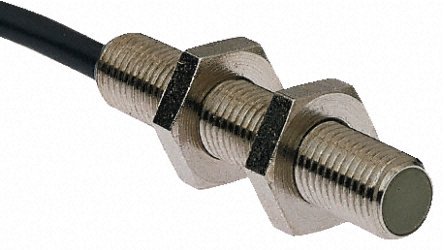

DPIIX M08 LONG BL 2MM PNP NC CAB2M
Longueur CENELEC standard E2A, acier inoxydable
Matériau face sensible PBTP
Indications par LED
Plage de températures d'utilisation : -25 à +70 °C
Consommation de courant : 15 mA
Courant de commutation maximum : 200 mA
Protection contre les courts-circuits et contre les inversions de polarité
| Reference: | E2A-S08LS02-WP-B2 2M |
| Code fournisseur: | 243967 |
| Code commande: | 1151-8198 |
| Disponibilité: | En stock (2) |
Caracteristiques

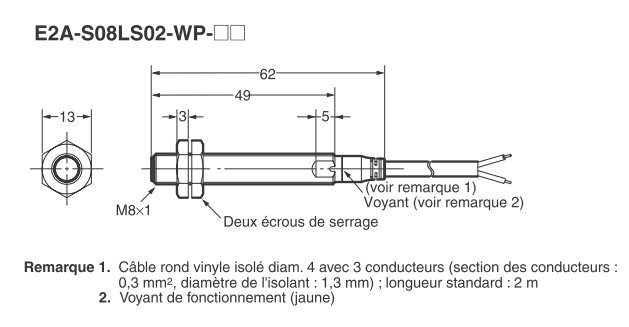

| Dimensions: | 62 mm |
| Forme: | M8 |
| Type de sortie: | DC PNP |
| Fonction de sortie: | NF |
| Tension d'alim (min/max) min: | 10V |
| Tension d'alim (min/max) max: | 32V |
| Raccordement: | sortie cable nu |
| Nombre de fils: | 3 |
| Montage cap: | NOYABLE |
| Indice de protection: | IP67 |
| Portée nominale (min/max) min: | 0mm |
| Portée nominale (min/max) max: | 2mm |
