Capteur inductif
Détecteur inductif M8 avec connecteur déporté M12
| Reference: | BES 516-324-E4-C-S4-00,2 |
| Code fournisseur: | BES00N8 |
| Code commande: | 1021-1977 |
| Disponibilité: | sous 10 jour(s) |
Caracteristiques
| Poids: | 50g |

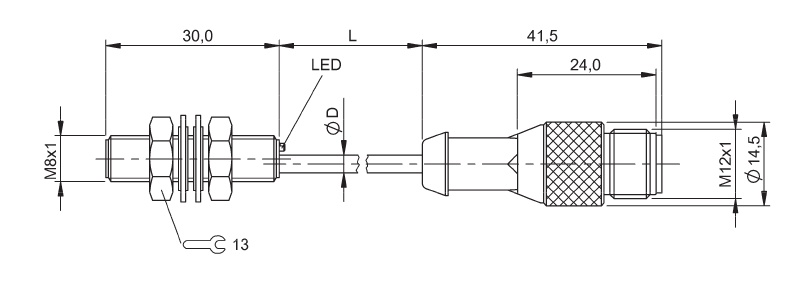

| Dimensions: | 8 x 30 mm |
| Forme: | M8 |
| Type de sortie: | DC PNP |
| Fonction de sortie: | NO |
| Tension d'alim (min/max) min: | 10V |
| Tension d'alim (min/max) max: | 30V |
| Raccordement: | cable + connecteur M12 |
| Nombre de fils: | 4 |
| Montage cap: | NOYABLE |
| Indice de protection: | IP68 |
| Portée nominale (min/max) min: | 0mm |
| Portée nominale (min/max) max: | 1.5mm |
