Capteur inductif M12 Boitier court
| Reference: | BES M12ME-PSC40B-S04G-003 |
| Code fournisseur: | BES00EF |
| Code commande: | 1021-0505 |
| Disponibilité: | Nous contacter |
Caracteristiques

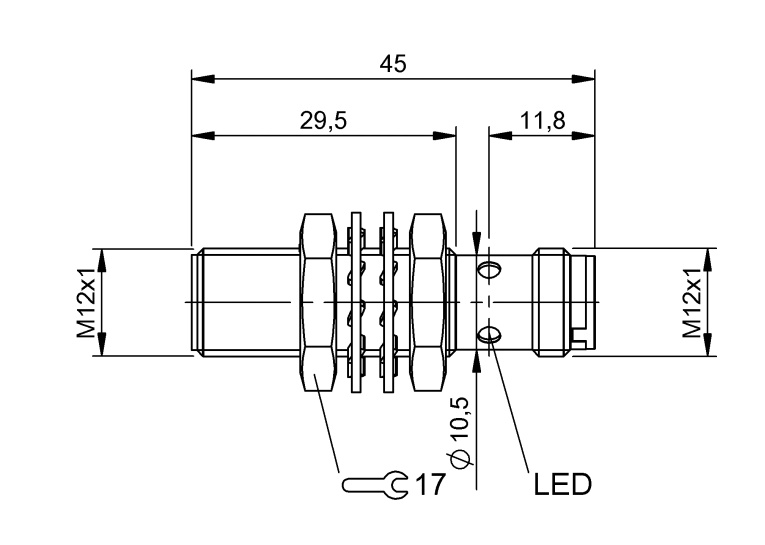

| Dimensions: | 30 x 45 x 0 mm |
| Forme: | M12 |
| Type de sortie: | DC PNP |
| Fonction de sortie: | NO |
| Tension d'alim (min/max) min: | 10V |
| Tension d'alim (min/max) max: | 30V |
| Raccordement: | connecteur M12 |
| Nombre de fils: | 3 |
| Montage cap: | NOYABLE |
| Indice de protection: | IP68 |
| Portée nominale (min/max) min: | 0mm |
| Portée nominale (min/max) max: | 4mm |
