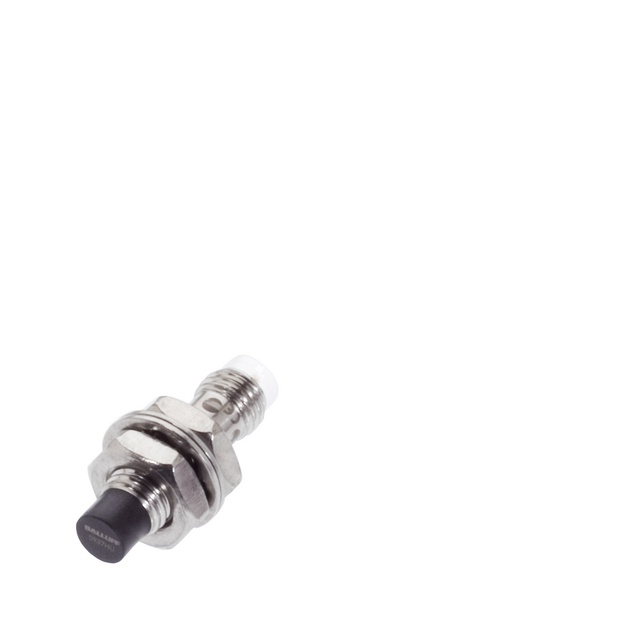

Capteur inductif M8 portée 4mm connecteur M8 3b
Capteur inductif M8 portée 4mm connecteur M8 3b
| Reference: | BES M08EB-PSC40F-S49G |
| Code fournisseur: | BES000M |
| Code commande: | 1020-7772 |
| Disponibilité: | sous 10 jour(s) |
Caracteristiques
| Poids: | 100g |

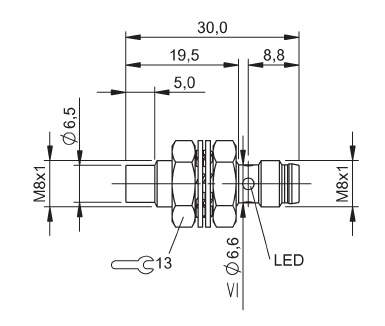

| Dimensions: | 8 x 30 mm |
| Forme: | M8 |
| Type de sortie: | DC PNP |
| Fonction de sortie: | NO |
| Tension d'alim (min/max) min: | 10V |
| Tension d'alim (min/max) max: | 30V |
| Raccordement: | connecteur M8 3 broches |
| Nombre de fils: | 3 |
| Montage cap: | NON-NOYABLE |
| Indice de protection: | IP68 |
| Portée nominale (min/max) min: | 0mm |
| Portée nominale (min/max) max: | 4mm |
