produit sélectionné

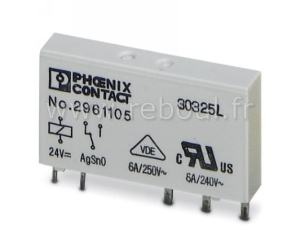

Relais miniatures enfichables, avec contact multicouche, 1 inverseur, tension d'entrée 24 V DC

image non contractuelle
Quantité Prix de l'unité TTC
1+ 13.76 €


- + ajouter à la commande
Code commande
1223-4646
Reference fabricant
REL-MR- 24DC/21AU (code: 2961121)
Fabricant
PHOENIX CONTACT
Disponibilité pour la quantité demandée


Description

ce monte sur les embases :
2900445 PLC-BPT- 24DC/21
2967219 PLC-BSP- 24DC/21
2966016 PLC-BSC- 24DC/21
2900446 PLC-BPT- 24UC/21
2967222 PLC-BSP- 24UC/21
2966029 PLC-BSC- 24UC/21
2966964 PLC-BSC- 36DC/21
2900447 PLC-BPT- 48DC/21
2967329 PLC-BSP- 48DC/21
2966090 PLC-BSC- 48DC/21
2900262 PLC-BPT- 24DC/ 1/SEN
2967206 PLC-BSP- 24DC/1/SEN
2966061 PLC-BSC- 24DC/1/SEN
2900449 PLC-BPT- 24DC/ 1/ACT
2967196 PLC-BSP- 24DC/1/ACT
2966058 PLC-BSC- 24DC/1/ACT
2900450 PLC-BPT- 24UC/ 1/ACT
2982809 PLC-BSP- 24UC/ 1/ACT
2982799 PLC-BSC- 24UC/1/ACT
2980458 PLC-BSC- 24DC/21/SO46

est monté sur les modules complets :
2966265 PLC-RSC- 24DC/21AU
2966278 PLC-RSC- 24UC/21AU
2966126 PLC-RSC- 48DC/21AU
2966540 PLC-RSP- 24DC/21AU
2966553 PLC-RSP- 24UC/21AU
2966566 PLC-RSP- 48DC/21AU
2900306 PLC-RPT- 24DC/21AU
2900307 PLC-RPT- 24UC/21AU
2900308 PLC-RPT- 48DC/21AU
2966317 PLC-RSC- 24DC/1AU/SEN
2967374 PLC-RSP- 24DC/1AU/SEN
2900313 PLC-RPT- 24DC/ 1AU/SEN



Schéma et datasheet



Caractèristiques

Caractéristiques générales
Poids 70g
RoHS oui
Dimensions 28 x 15 x 5 mm
Tension de bobine 24VDC
Courant max (ss 250VAC) 6A
Configuration contacts RT (Inverseur)
Nombre de contacts 1
Type de montage CI
Indicateur à led non
Bouton de test non
Mode de fonctionnement Monostable
Diode de roue libre non
